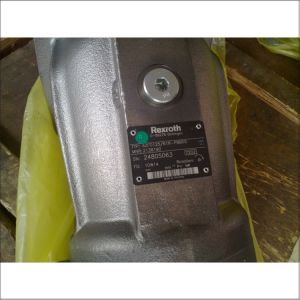

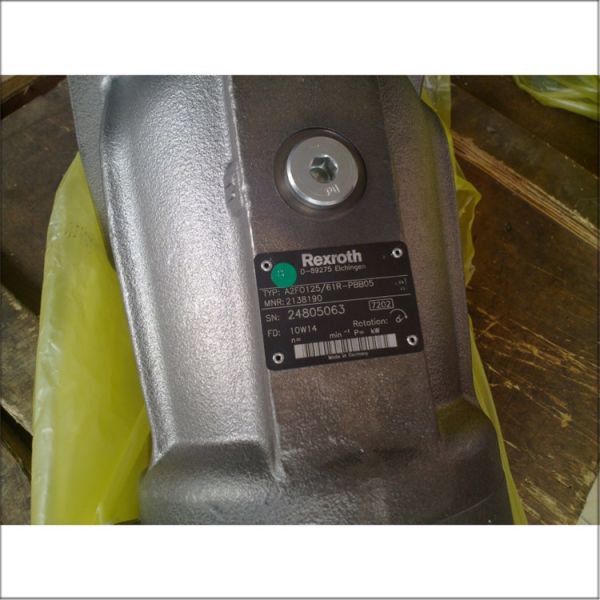

Rexroth A2FO125 61R-PBB05 Mechanical Hydraulic Pump for Industrial Fast Shipping Cast Iron Material Precision Solution

Technical Specifications

• Model: A2FO125 61R-PBB05
• Series: A2FO Series
• Type: Axial piston pump (fixed displacement)
• Displacement: 125 cm³
• Nominal Pressure: Up to 400 bar
• Maximum Pressure: 450 bar
• Speed Range: 1600 to 3000 RPM
• Flow Rate: Up to 180 liters per minute (LPM)
• Mounting Flange: ISO 3019-2 4-hole
• Direction of Rotation: Clockwise
• Body Material: Cast Iron
• Seal Type: Viton
• Fluid Compatibility: Petroleum oils
• Fluid Cleanliness: 19/17/14 micron
• Working Temperature Range: -20°C to +70°C (-4°F to +158°F)
• Weight: Approximately 35 kg

Features

• High Pressure Capability: Suitable for high-pressure applications up to 450 bar.
• Wide Flow Range: Capable of handling flow rates up to 180 LPM.
• Robust Design: Cast iron body ensures durability and reliability.
• Versatile Mounting: ISO 3019-2 4-hole flange for easy integration into various hydraulic systems.
• Temperature Resistance: Operates reliably within a wide temperature range.
• High-Speed Operation: Designed for speeds up to 3000 RPM.

Applications

• Machine Tool
• Marine/Offshore Systems
• Presses
• Primary Metal Processing
• Plastics, Pulp & Paper
• Test Equipment
